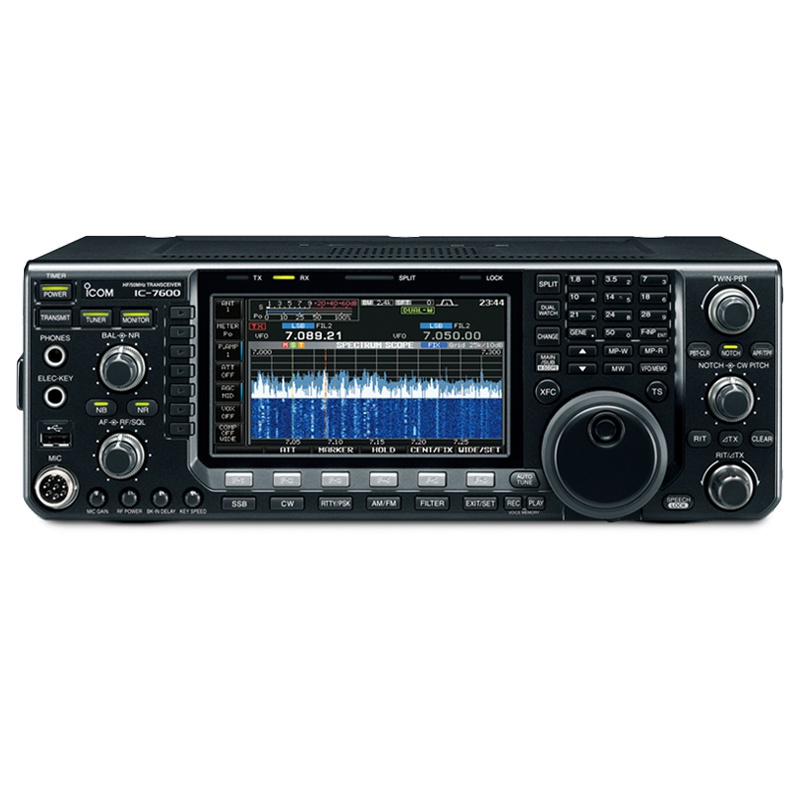

ICOM IC-7600

ICOM IC-7600
KV/50MHz transceiver


KV/50MHz transceiver


Spectrum Waterfall Display Function

The waterfall display captures signal strengths over time. This allows you to see weak signals that may not be apparent on a normal spectrum scope. The combination of the spectrum and waterfall screens give you a better view of weaker signals as band conditions change.

Spectrum scope with waterfall
 Spectrum scope with waterfall (wide screen setting)
Spectrum scope with waterfall Spectrum scope with waterfall (wide screen setting)

Mouse Operation

Connect a USB mouse to select various spectrum scope features. You can point and click the mouse for “Click-and-Listen” receiver control. * A USB hub is required to simultaneously connect both a USB mouse and a keyboard.

Mouse Operation

For example:
  • Left-click to select a signal or operating frequency.
  • Right-click to temporarily select a different frequency. Release the mouse button to return to the original frequency.
  • Click and hold a button (either left or right) and move to the right or left to increase or decrease the operating frequency (similar to rotating the main dial).

Audio Peak Filter AF Level Setting

The IC-7600’s Audio Peak Filter function is improved with the addition of a separate APF gain function. In steps of 1 dB, you are able to increase the APF gain up to 6 dB – excellent for hearing weak CW signals buried in the noise.

New CI-V Commands


Mouse Operation
Mouse Operation
  • Antenna Control Commands

    When you change operating frequency, mode and filter settings, the antenna controller command automatically outputs the current status via the remote jack (CI-V). Commands can be used with an external antenna controller to control a multi-band antenna. * Compatible 3rd party external antenna controller required.




    •
  •
  • Logging Software Commands

    Commands are added to record the transceiver’s Main and Sub band frequencies, modes and filter and data settings in Dualwatch or Split operation. These commands can be used via the remote jack (CI-V) or USB connector for logging operations. * Compatible 3rd party logging software required.




    •
  •
  • Other New Commands

  • RIT and ⊿TX setting commands
  • Wake-up function from the standby mode via the remote jack (CI-V)
